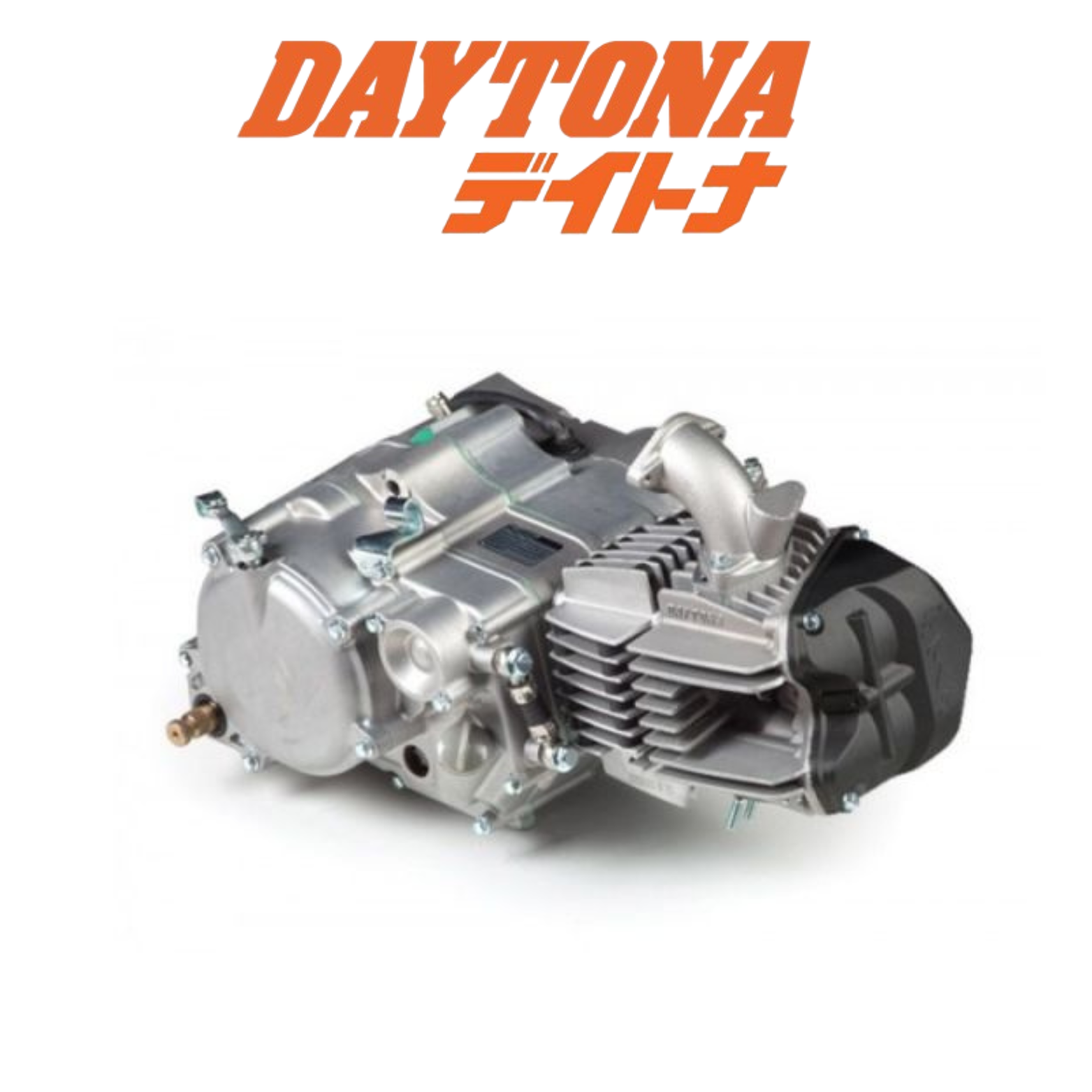

Daytona Anima 190cc FS5 engine (with automatic decompression)

Daytona Anima 190cc FS5 engine block (with automatic decompression)

[CLICK HERE TO VIEW THE MANUAL OF THIS ENGINE BLOCK]

Compatible with:
Honda / Skyteam mounting points

Description:

The Daytona Anima 190cc FS5 is a powerful and high-quality engine block, equipped with an automatic decompression and a 5-speed gearbox with shift pattern 1–N–2–3–4–5. This FD5 version features light coils with 12V 50W output, suitable for lighting or charging.

The block is air-cooled, equipped with 4 valves, and designed for top performance with reliability according to Japanese standards.

Technical specifications:

• Power: 25 hp

• Displacement: 187.2cc

• Bore x Stroke: 62.0 mm x 62.0 mm

• Engine type: Air-cooled, 4-stroke, SOHC, 4 valves

• Starting method: Kick starter with automatic decompression system

• Clutch: 6-plate wet clutch

• Distribution chain: 94 links

• Primary transmission: 67 / 18 (3.72)

• Ignition: AC-CDI with 12V light coil (50W output)

• Spark plug: NGK ER9EH

Gear ratios (5-speed):

• 1st: 14/34 = 2.43

• 2nd: 15/26 = 1.73

• 3rd: 18/24 = 1.33

• 4th: 22/24 = 1.09

• 5th: 24/22 = 0.91

• Shift pattern: 1 – N – 2 – 3 – 4 – 5

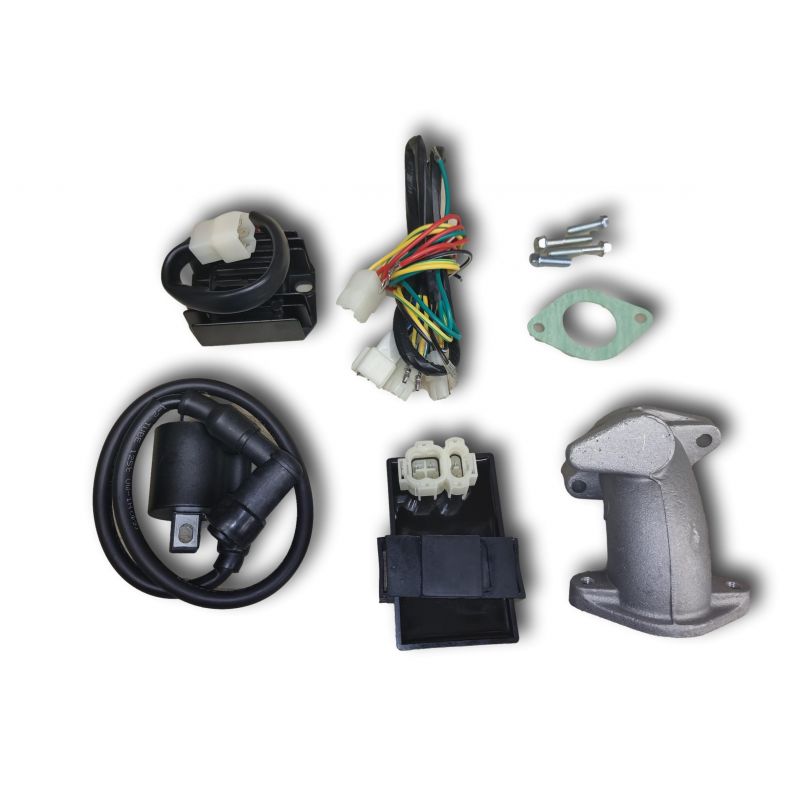

Included:

• Intake manifold with gasket and 2 bolts

• Ignition coil

• Wiring harness for CDI and lighting (suitable for Honda-type regulator)

Not included:

• Carburetor

• Kickstart pedal

• Shift pedal

• Front sprocket (output shaft)
