Description

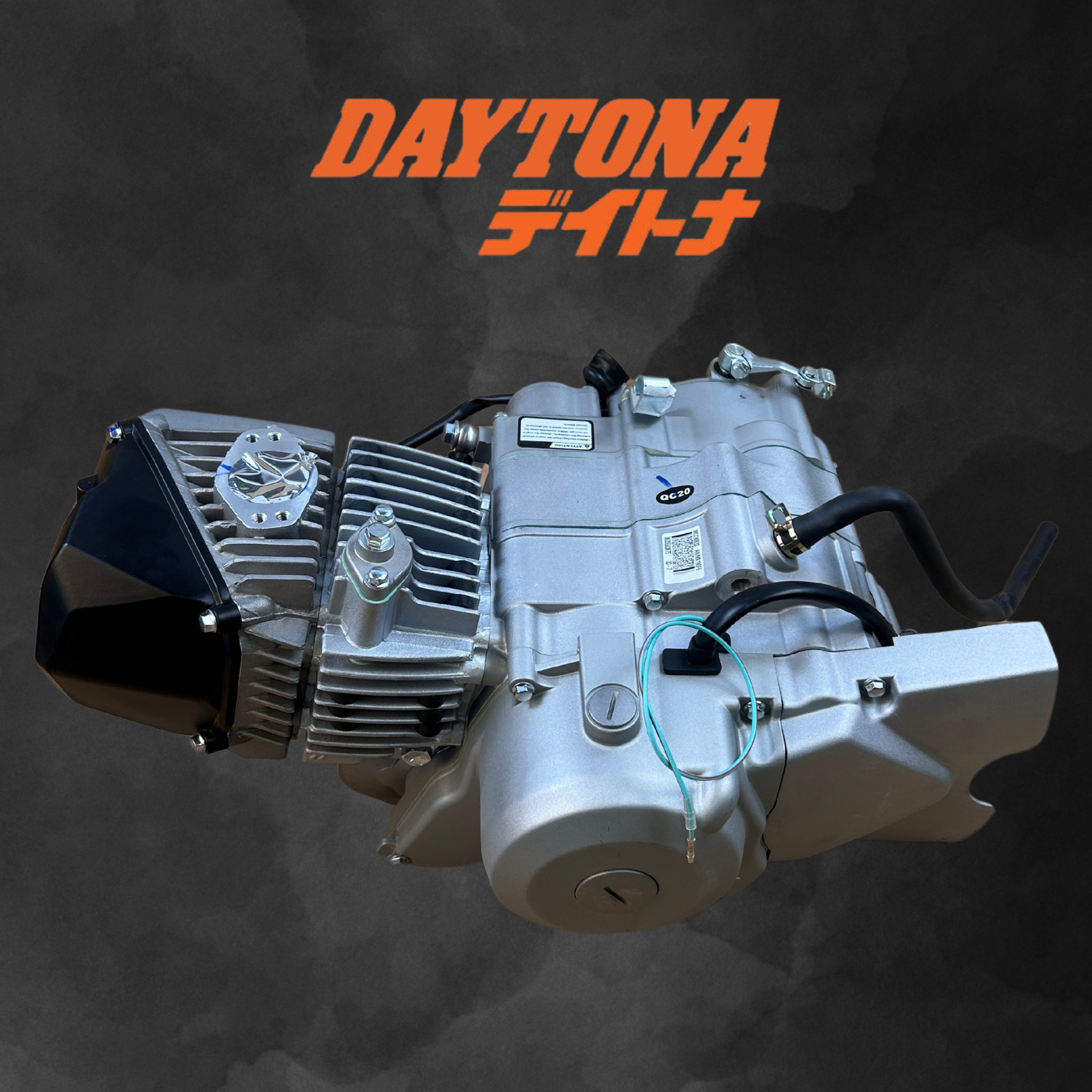

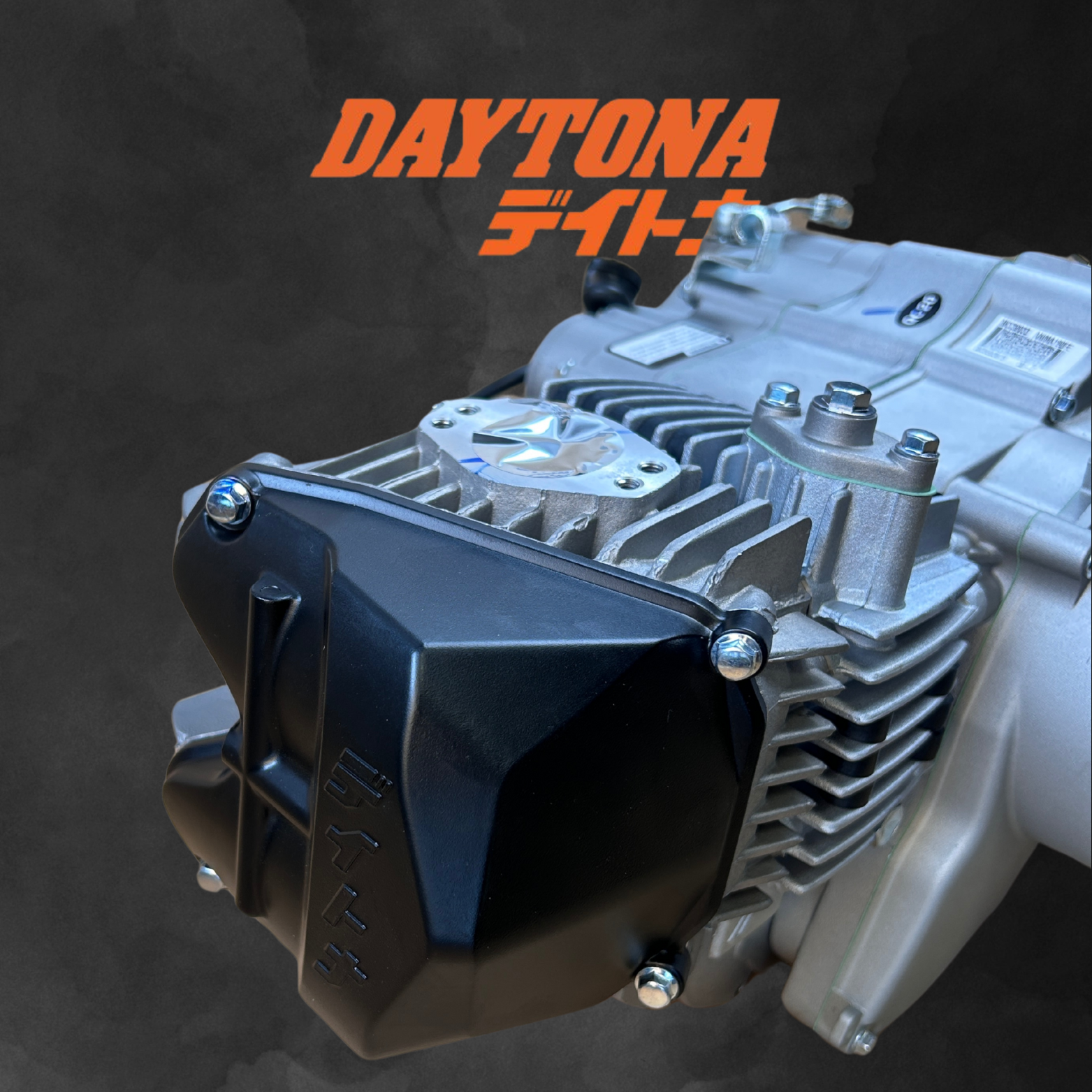

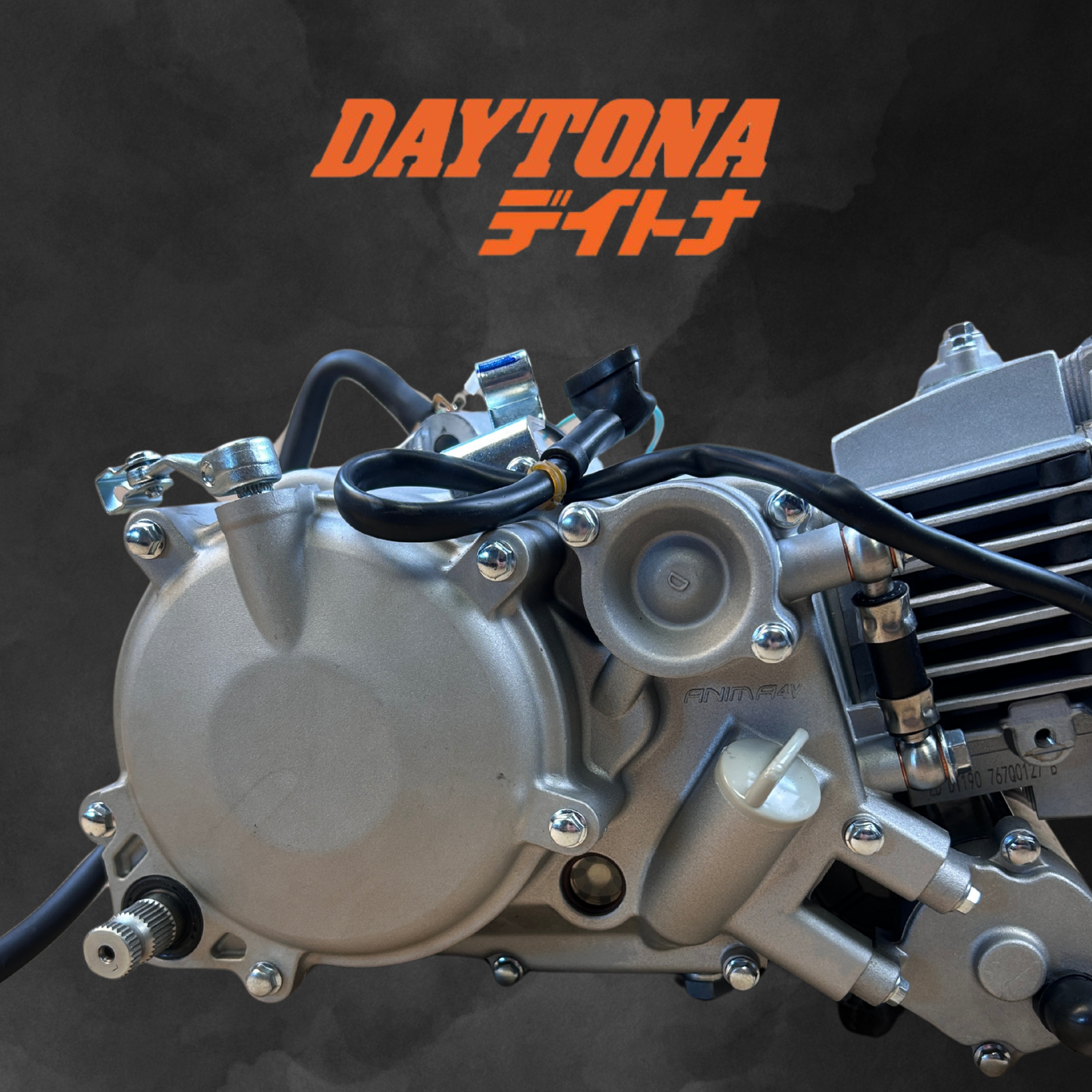

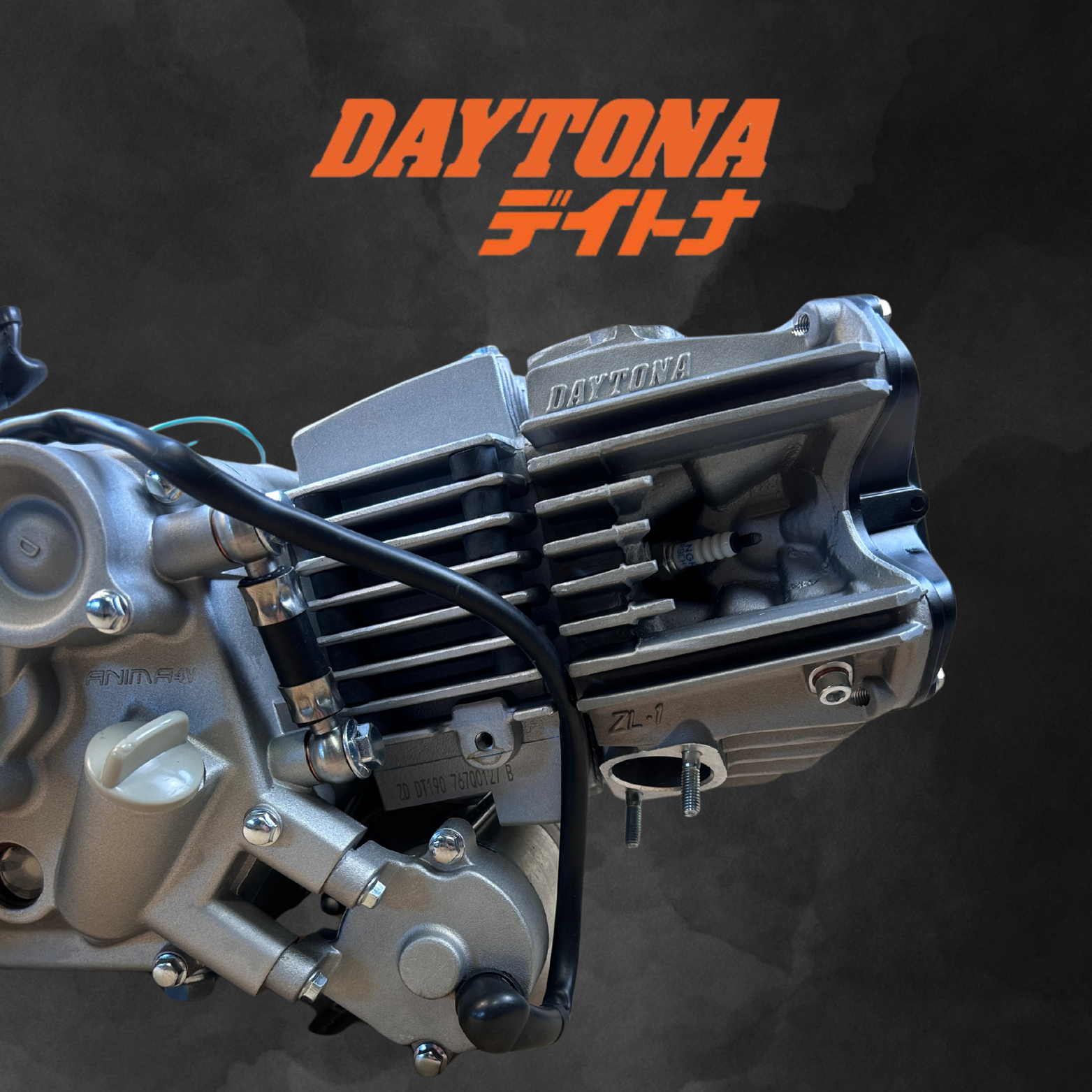

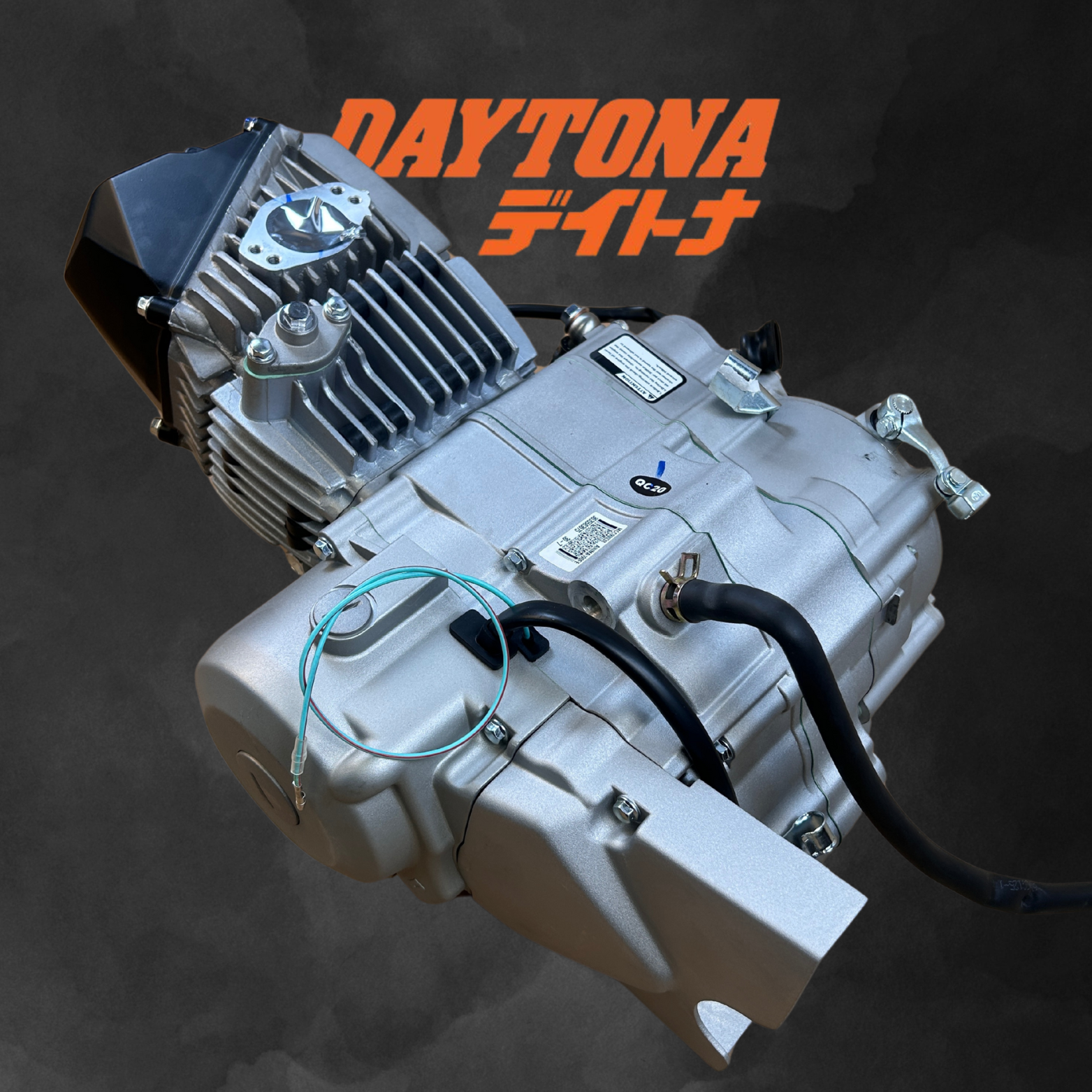

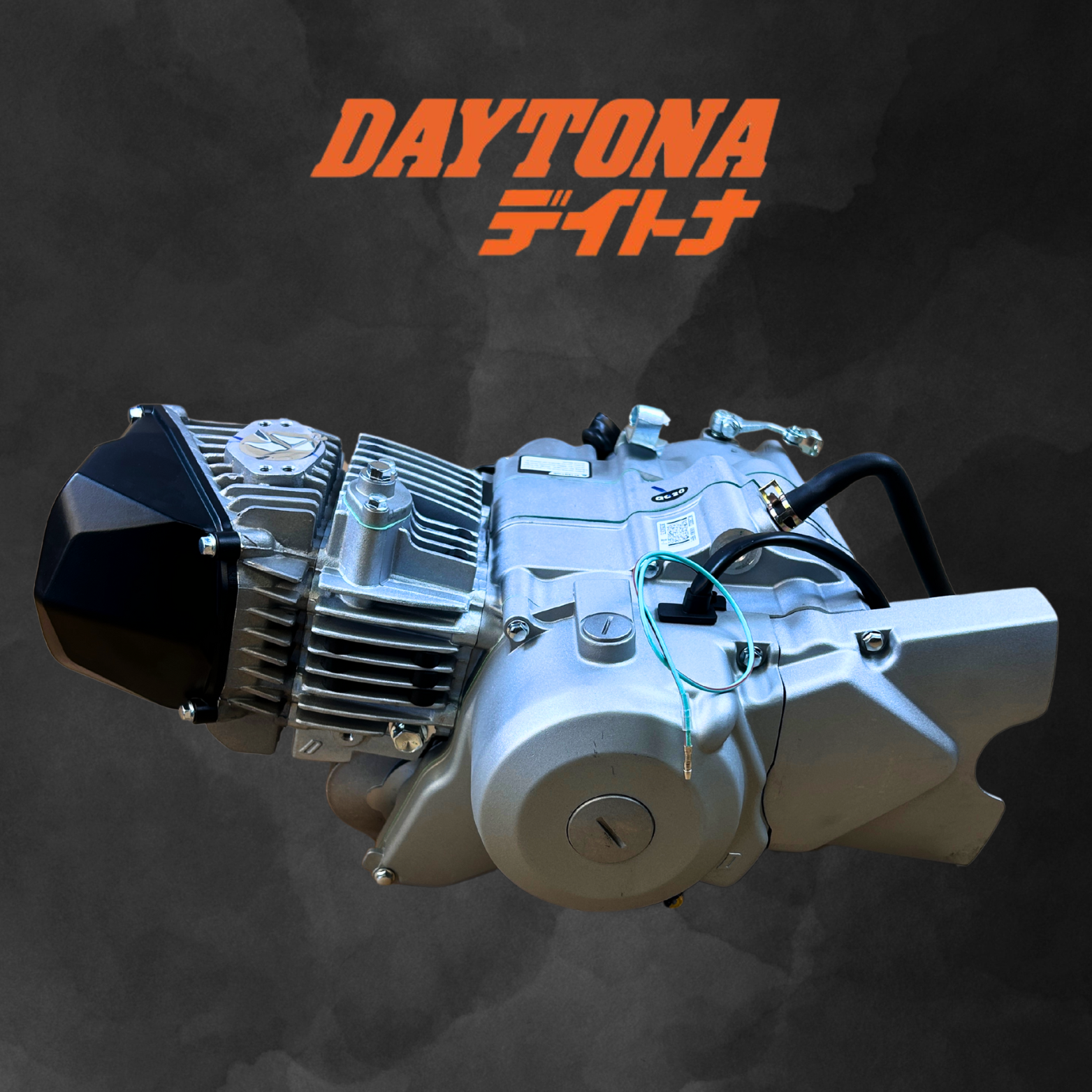

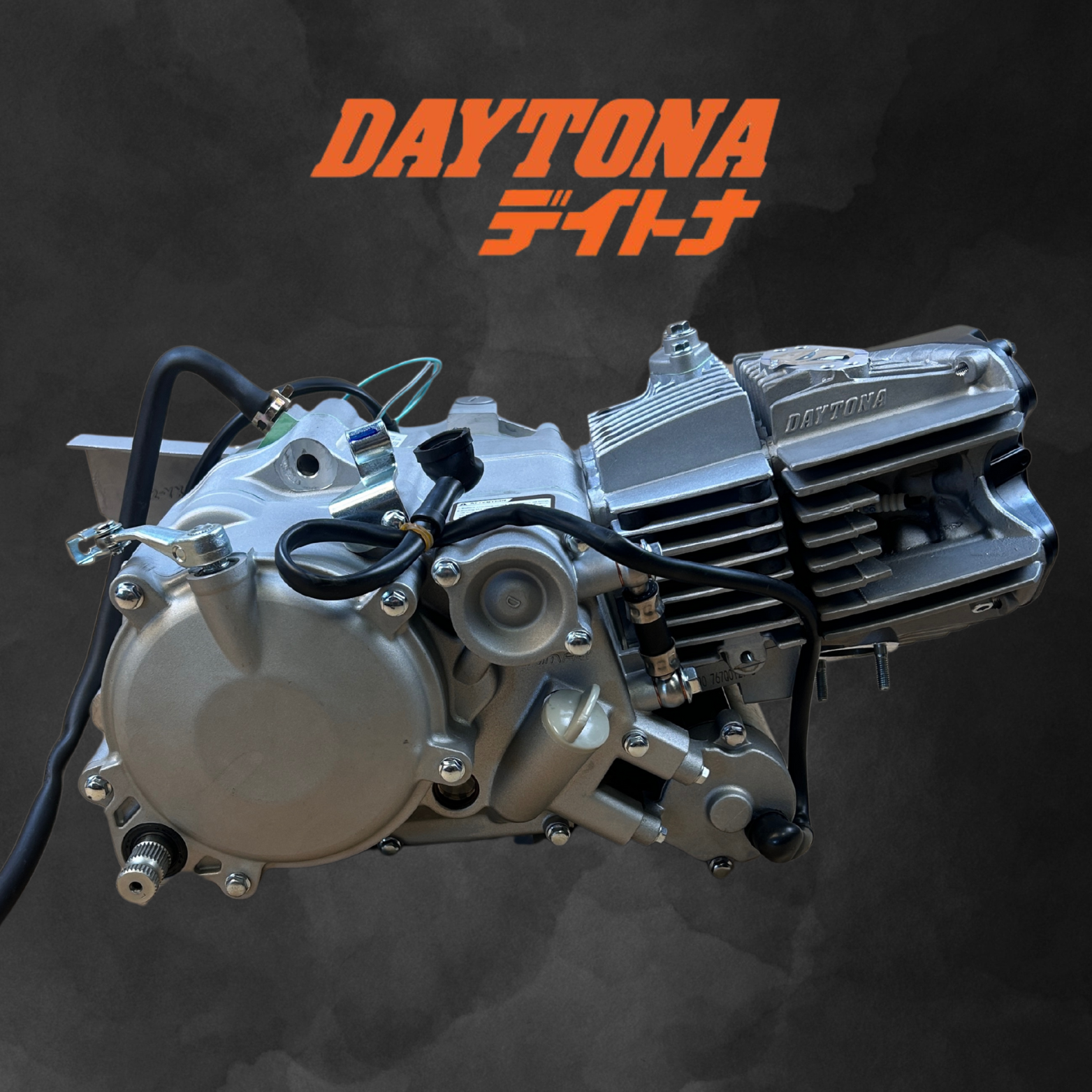

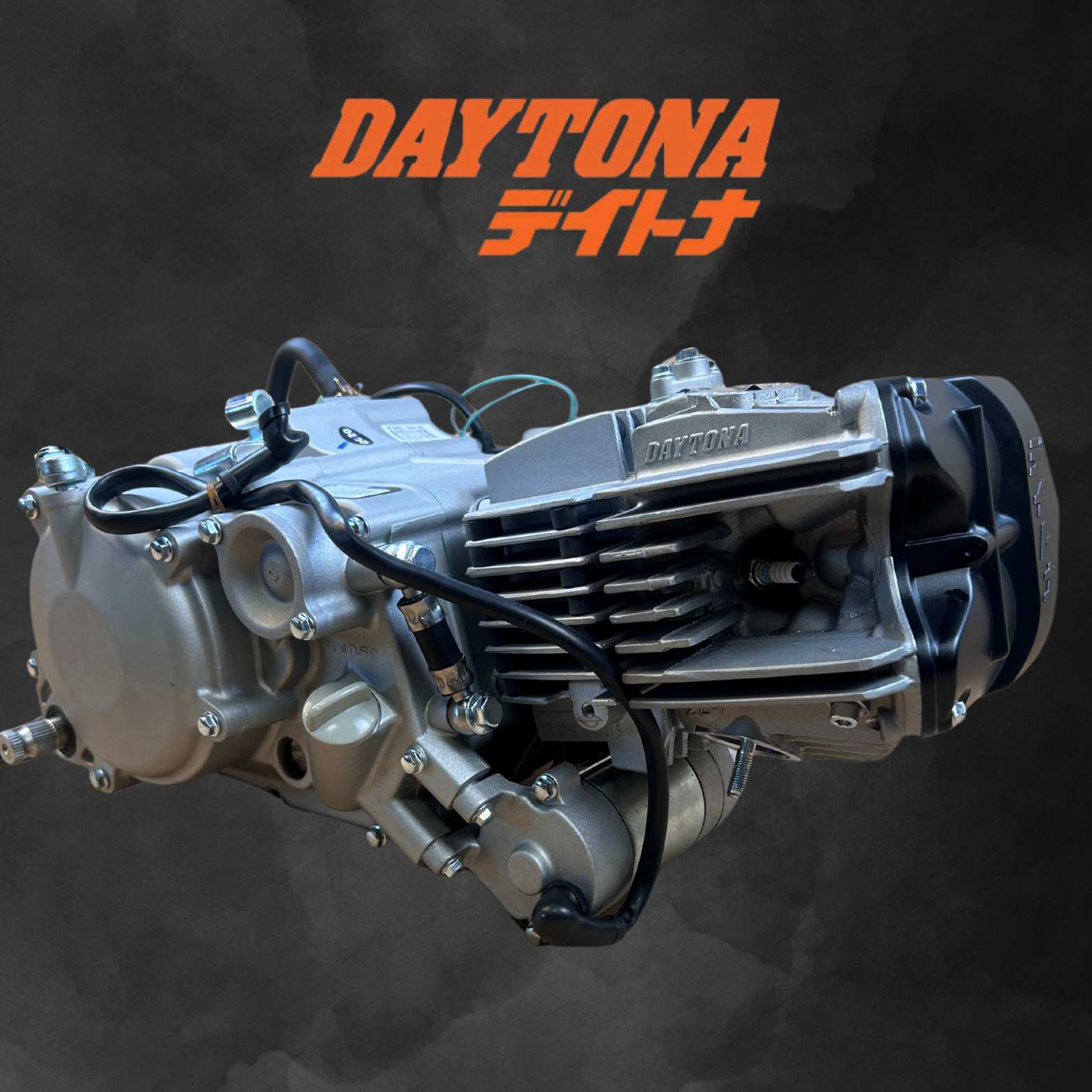

The Daytona Anima 190cc FE is a powerful, air-cooled 4-stroke engine with an electric starter and 5-speed gearbox. This FE version is equipped with light coils (12V, 50W) and has a gearbox with shift pattern 1–N–2–3–4–5. The automatic decompression ensures that the engine is easy to start, even with the kickstarter.

[CLICK HERE TO VIEW THE MANUAL OF THIS ENGINE]

Technical specifications:

  • Cylinder capacity: 187.2cc

  • Bore x Stroke: 62.0 mm x 62.0 mm

  • Engine type: Air-cooled, 4-stroke, SOHC, 4 valves

  • Starting method: Electric starter + kickstarter (primary kick-type)

  • Decompression: Automatic decompression system

  • Clutch: 6-plate wet clutch

  • Timing chain: 94 links

  • Primary transmission: 67 / 18 (3.72)

  • Ignition: AC-CDI with 12V light coil (50W output)

  • Spark Plug: NGK ER9EH

Transmission & Gear Ratios (5-speed):

  • 1st: 14/34 = 2.43

  • 2nd: 15/26 = 1.73

  • 3rd: 18/24 = 1.33

  • 4th: 22/24 = 1.09

  • 5th: 24/22 = 0.91

  • Shift Pattern: 1 – N – 2 – 3 – 4 – 5

Included:

  • Intake manifold with gasket and 2 bolts

  • Ignition coil

Not Included:

  • Carburetor

  • Kickstart pedal

  • Shift pedal

  • Front sprocket (output shaft)

Note:
Although Daytona now has its engine blocks manufactured in China, they are still built according to 100% Japanese technology, standards, and quality control.
