50cc 4-stroke complete engine – 4 speeds – Electric start – Manual clutch + kick start – 12V

50cc 4-stroke complete engine – 4 speeds – Manual clutch – Electric start + kick start – 12V

Key Specifications

• Displacement: 49/50cc
• Engine: 1-cylinder, 4-stroke, air-cooled
• Gearbox: 4 speeds
• Shift pattern: 1 – N – 2 – 3 – 4
• Clutch: manual clutch
• Start: kick start + electric starter
• Electrical system: 12V CDI unit
• Maximum power output: 2 kW at 8,000 rpm
• Maximum torque: 2.6 Nm at 5,500 rpm
• Bore × stroke: 39 × 41.4 mm
• Compression ratio: 8.5 : 1
• Color: black

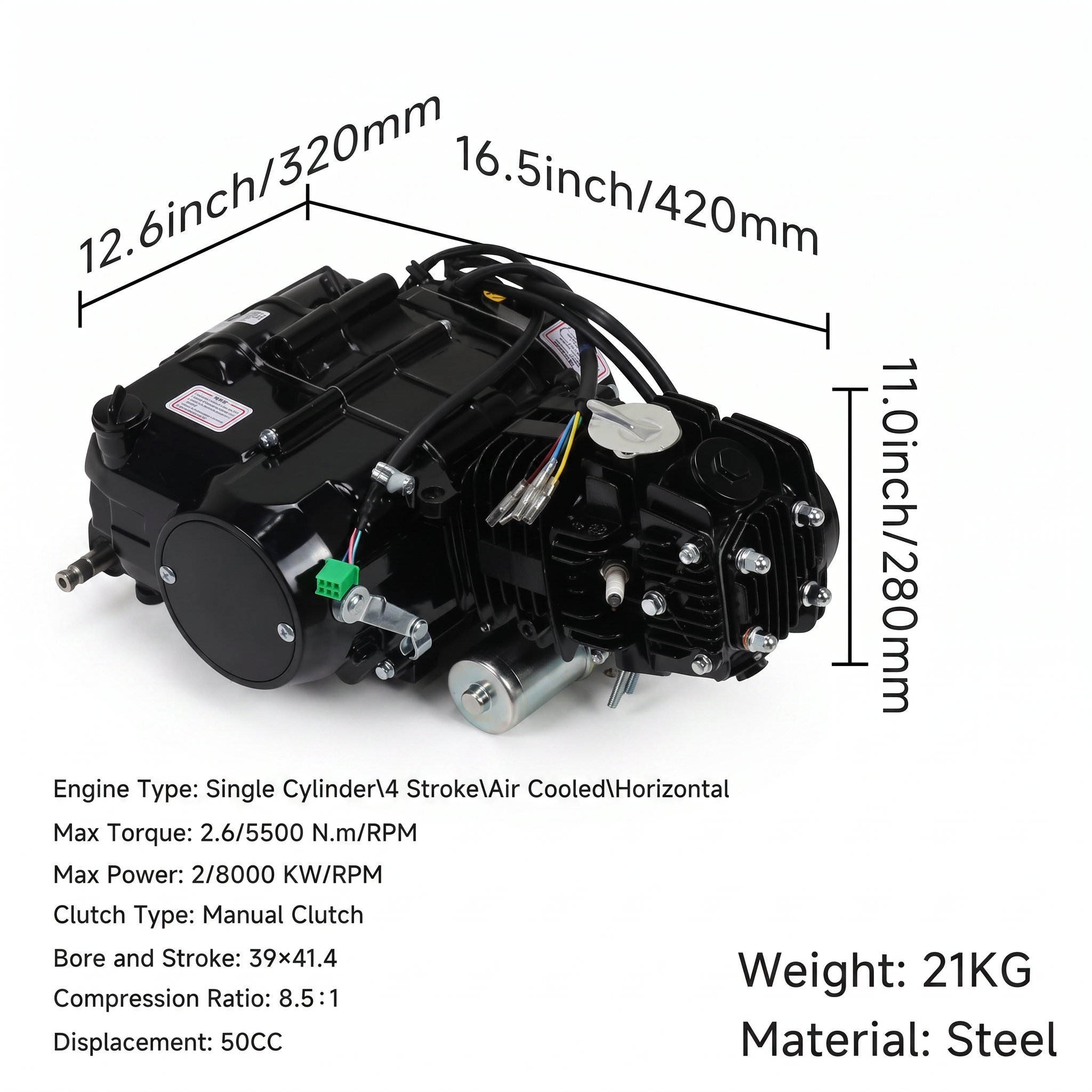

• Dimensions: approx. 420 × 320 × 280 mm
• Weight: approx. 21 kg

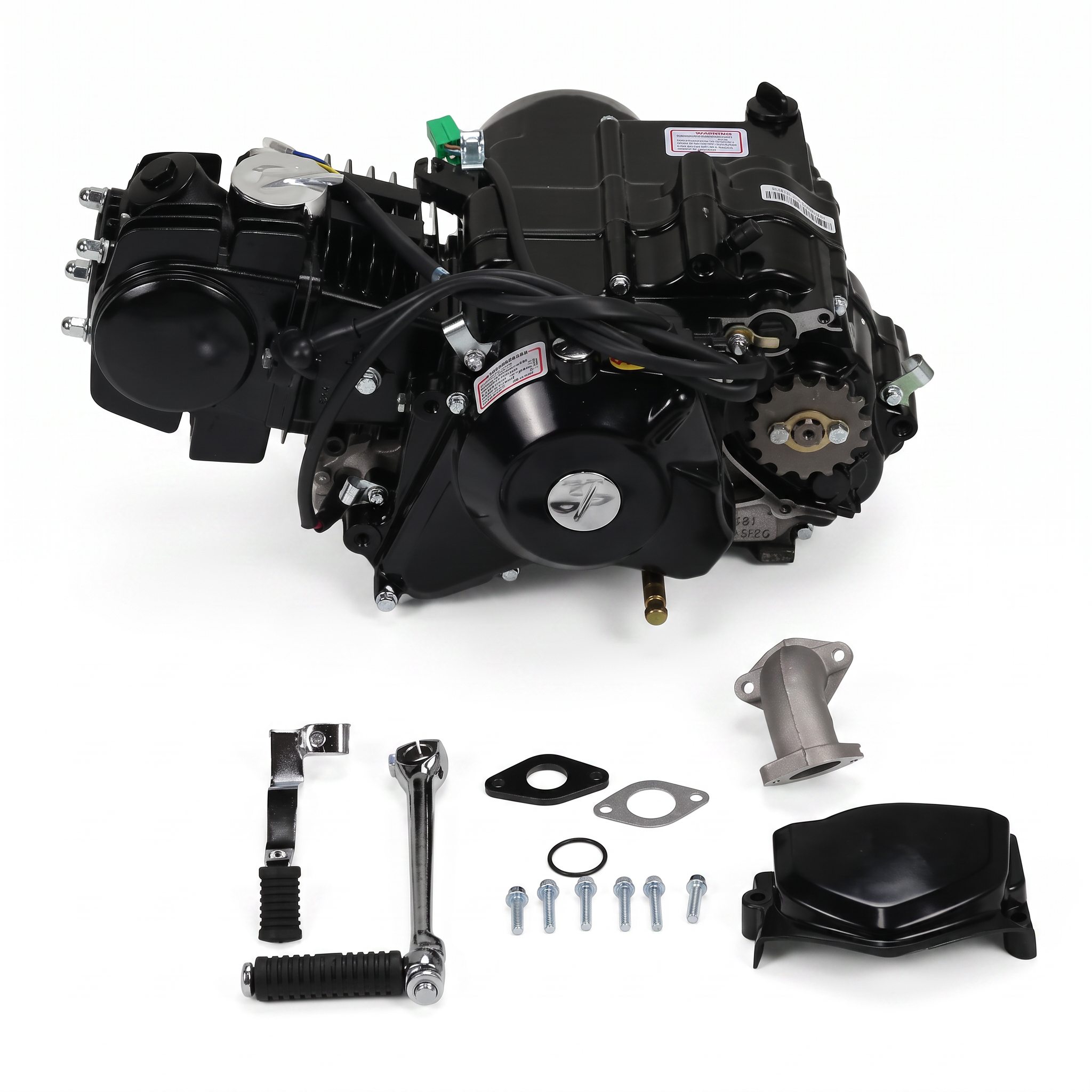

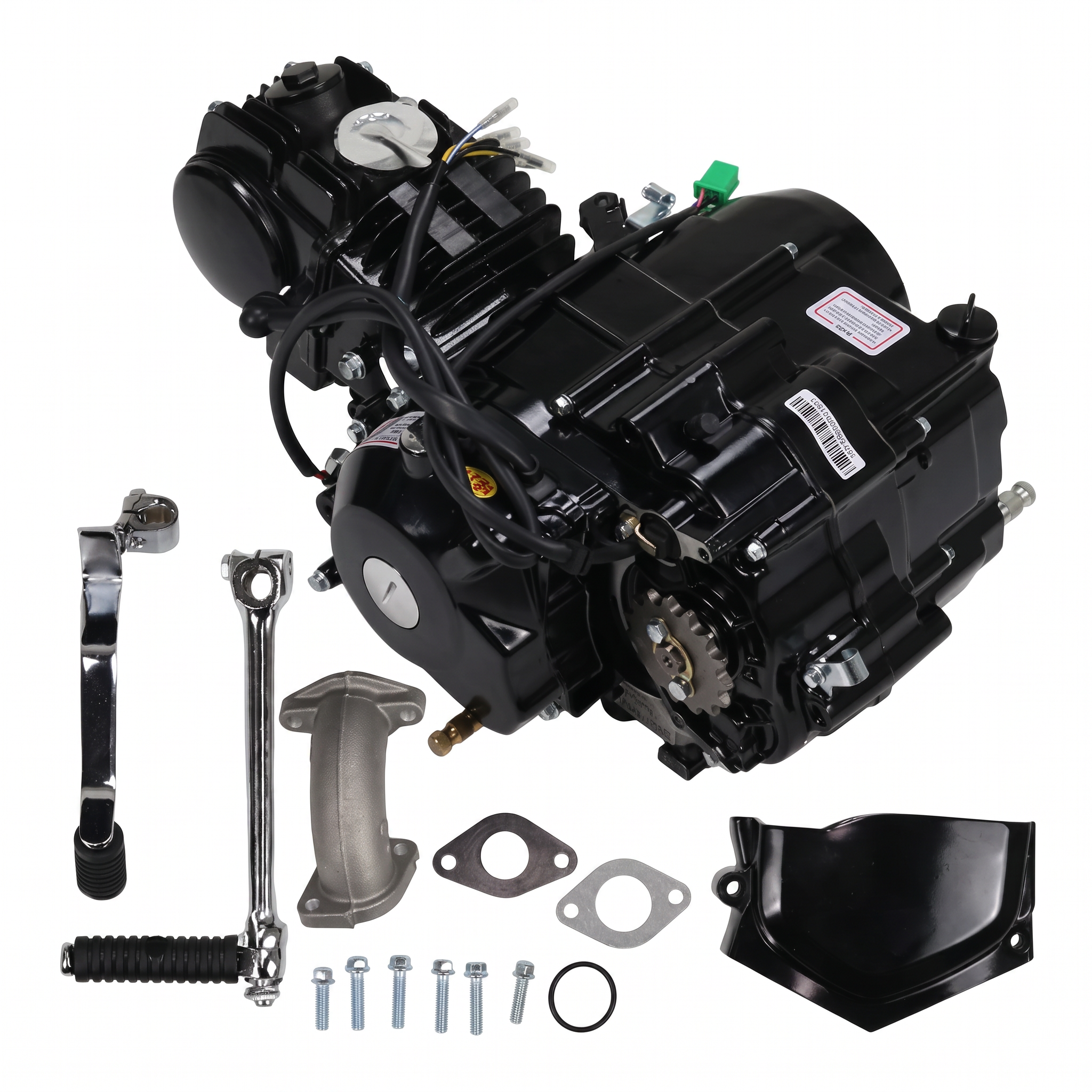

Included

• Complete 50cc engine
• Intake manifold
• Kickstarter
• Shift lever
• Gaskets and mounting hardware as shown

Description

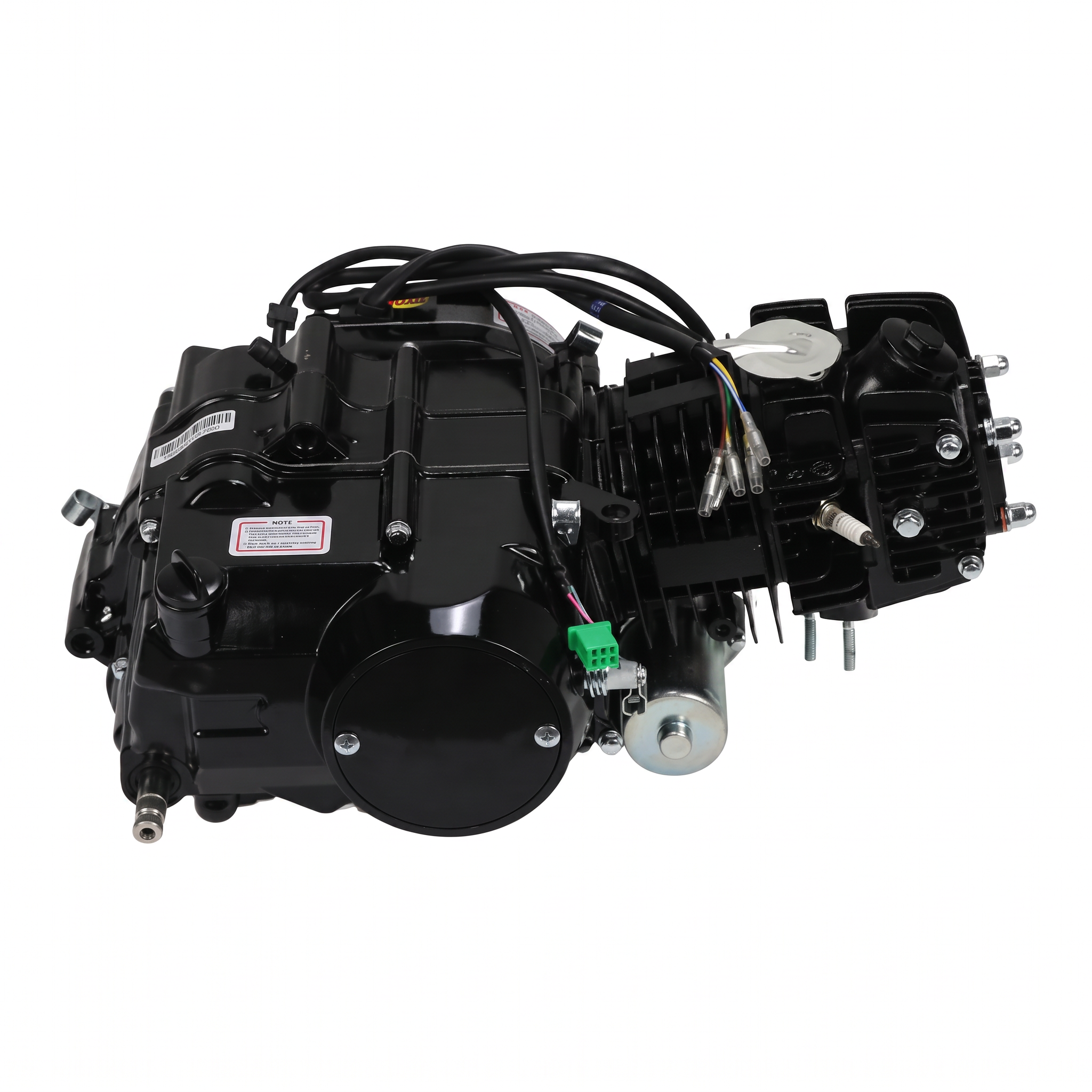

Complete horizontal 50cc 4-stroke complete engine with 4 speeds and a manual clutch. The engine features both an electric starter and a kickstarter and uses a 12V CDI unit.

Thanks to the well-known horizontal engine design, this model is suitable for various Dax, Monkey, Chaly, and similar 4-stroke models, provided the mounting points and connections match.

The complete engine comes with, among other things, the intake manifold, kickstarter, and gearshift lever, so you’ll have the most important mounting parts right away.
